New control panel with a graphic display that works instead of the display AGDISP16 or numerical keyboard AGDISP25. It is connected to the same connector PD2 of the unit through a 26 way cable (it is different from the 30 Way cable used for the other display).
The main function of this terminal is to be able to divide the memory of the captures among more organists with the password security besides the possibility to have a menu in different languages to select all the functions.
The use is very simple and evident for the organist because the function of the key is visualized on the monitor dynamically. With the rotation of the knob (encoder) it is possible to set up all the alphanumerics easily.

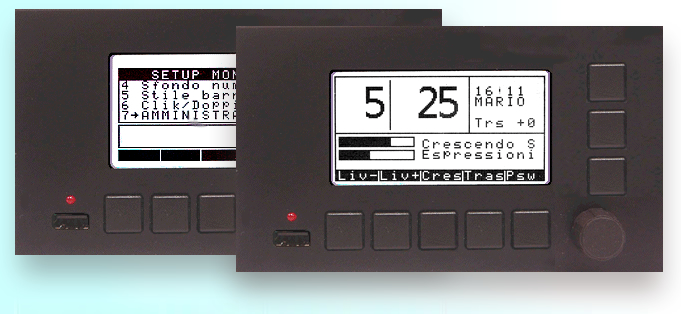

It has been used a led retroilluminated graphic LCD display with resolution 160 x 80 . The visualisation area is 72,3 x 37,8 mm. It is possible to write up to 8 lines with 20 characters each line. To visualize levels (groups) and buttons the characters are bigger. This panel is easy to place on an organ console thanks to its reduced sizes.
Adopting this solution it is possible to eliminate all the single control panel as:
- Display readouts AGDISP16 or digital numerical keyboard AGDISP25
- Operated switch for the block of the levels DAKEY
- Crescendo programmable panel CP
- Transposer selector PTR
- Led bar for crescendo and expression CR16
It is always possible to connect the single control panel pertinent to the transposer PTR and led bar CR16 on the inputs and outputs of the control unit.

With this panel it is possible:
• To menage all the memory levels of the general and particular captures.
• To share the memory in a number of password ( up to 50)
• For each password every organist can programme:
- General and particular captures (combination action)
- Programmable crescendo
- Selectors of the variable structure.
- Opening of the pallet (only for the proportional system)
• The function of the transposer
• The function of the programmable crescendo
• Graphic visualisation of the position of the crescendo and expressions pedals.
• Hour visualisation

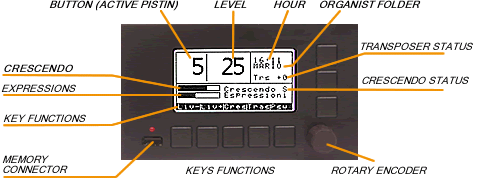

Visualization that come to the monitor in a operative way
Name of the password ( the organist)
Number of the button
Number of the level
Position of the transposer
Number of the crescendo

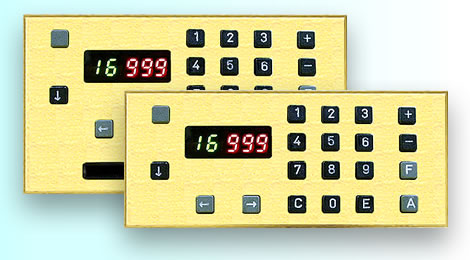

Instead of the display AGDISP it is possible to use this keyboard that allows to gain straight access to the desired level. It is totally self governing with the same connection via flat and it can have all the controls for captures. In any case it is always possible, to connect the piston 1-16 and the controls as SET and CANCEL, INCREASE or DECREASE through input board. If they are connected they work in the same way to the buttons of the numerical keyboard.
Compared with the display AGDISP16 with the selection of levels only through the buttons + and - , there are some advantages:
- To gain straight access to the level with buttons 0-9: Keys + and – increase or decrease the level as the display    AGDISP16.
- INCREASE and DECREASE- It is always possible to connect these command with input.
- SET and CANCEL . It is always possible to connect these command with input.
- With the arrows it is possible to decrease or increase the number of the active piston. It is possible select the piston and    with   the key [ E] ENTER to recall the programme.
- To gain straight access to 16x 9 programmes pressing only 2 keys. With the connection of 16 pistons and the recall of    the level   1-9 and the piston, it is possible to access to 144 programmes.

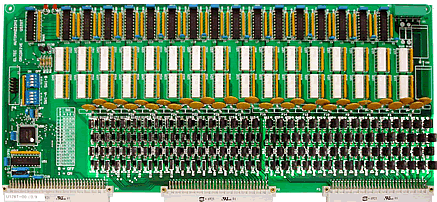

U128T: New card with 128 outputs

TECHNCAL DATA
- Maximum current out: 0,5 A
- All outputs are galvanic insulated and protected with fuse.
